guttabeta drain

Special dimpled membranes with filter fleece and sliding foil
Produkt
Advantages
  • high pressure resistance
  • highly resistant to cracks
  • abrasion resistant
  • free of decay
  • toxicologically harmless
  • no action on drinking water
  • impact resistant, elastic
  • resistant to chemicals
  • impact resistant and fracture resistant
Applikation examples
  • Foundation wall protection
  • Protection of the foundation wall sealing
  • Drainage systems
  • inding layers
  • Floor screed underlayers
  • Component of terrace garden concepts
  • Drainage of cellar walls

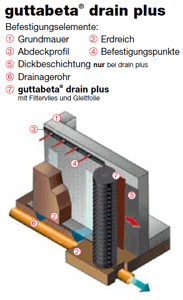

This dimpled membrane was developed specifically for the sealing of masonry with permanently elastic thick coatings. guttabeta® drain plus consists of three functional layers that are connected to a compact laying unit.

  • Foundation wall protection when sealed with thick coatings
  • The sliding foil prevents spot pressures and acts as a sliding surface for the dimpled membrane when the fill soil is set or otherwise moved.
  • Laminated, decay-resistant filter fleece prevents the membrane channels from being covered with slurry
  • Drainage systems for all floors or slopes
Technische Daten
Material
of membran: HDPE (High density polyethylene)
of webbing: Polypropylen
of slip film: LDPE (polyethylene)
Color
of membran: black
of webbing: grey
of slip film: black
Compression restistance
geprüft nach CE Norm EN 13252:2000/A1:2005
ca. 230 kN/m² (23 t/m²)
Stud height
about 8 mm
Studs per
1860 piece/m²
Air volume between studs
about 5,3 l/m²
Drainage ability
ca. 2,29 l/s/m (8.244 l/h/m)
Temperature reistance
- 40°C til + 80°C
Roll sizes in m
2,0 x 12,5
Pallet units
6 Rolls

Technical changes reserved, measure tolerance 4%, protect from ultraviolet radiation

Аксесоари
guttabeta cover profile
for covering the upper
edge of the dimpled membrane, brown
Length 2000 mm
Width 80 mm
Height 15 mm
guttabeta PE assembly head
for attachment to the dimpled
membrane using steel nails
upper width 7mm,
lower width 16 mm,
borehole ø 3 mm
guttabeta PE assembly dowels
for attachment to guttabeta vlies and vlies plus
Lenght 80 mm
Plate ø 53 mm
Butyl tape, black
for attachment to the dimpled membrane in the overlapping area
Length 15 m
Width 15 mm
